Nudge Smartwatch

  1. Demo Image 1

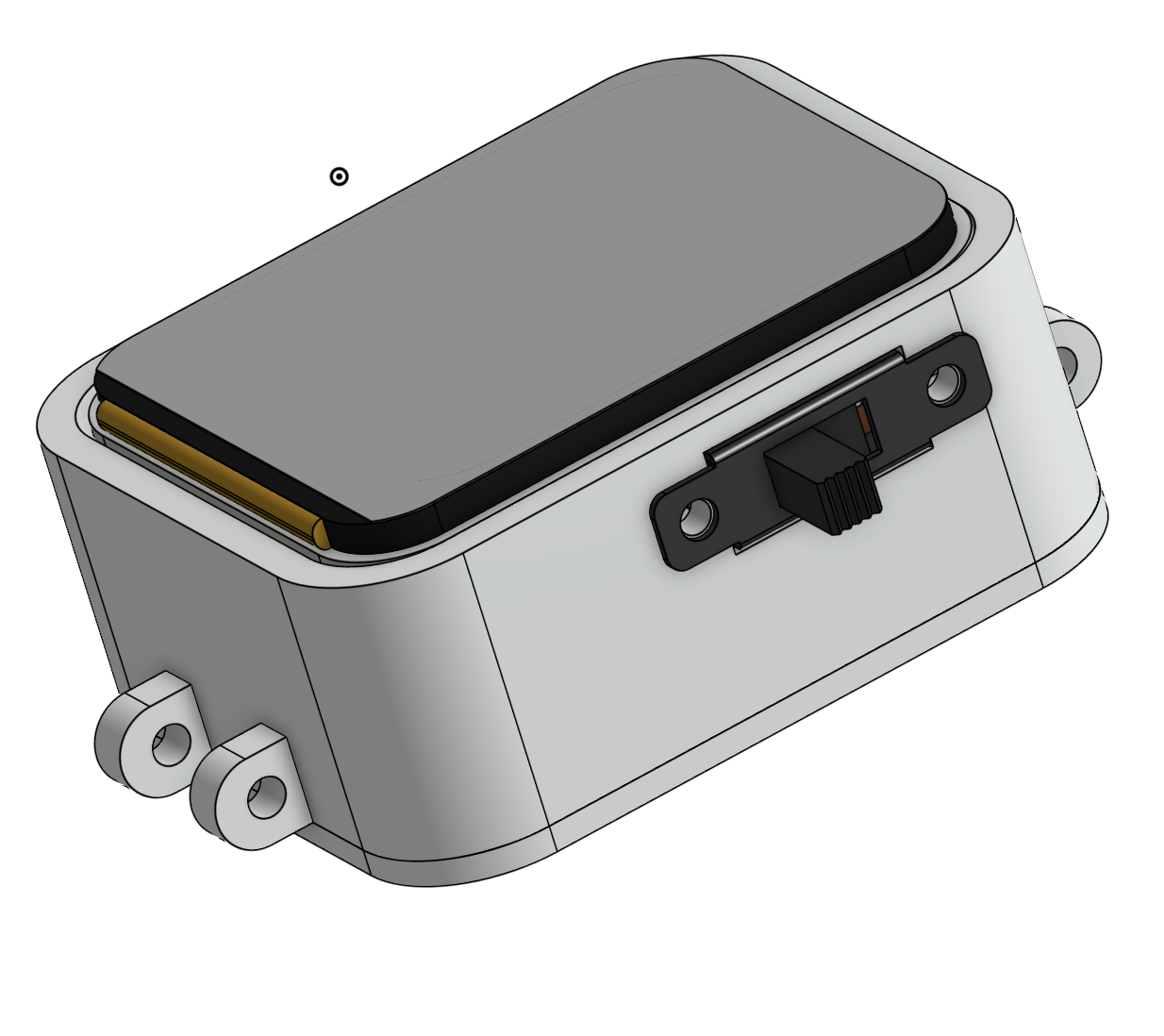

    CAD for smartwatch with touchscreen, vibration, buzzer.

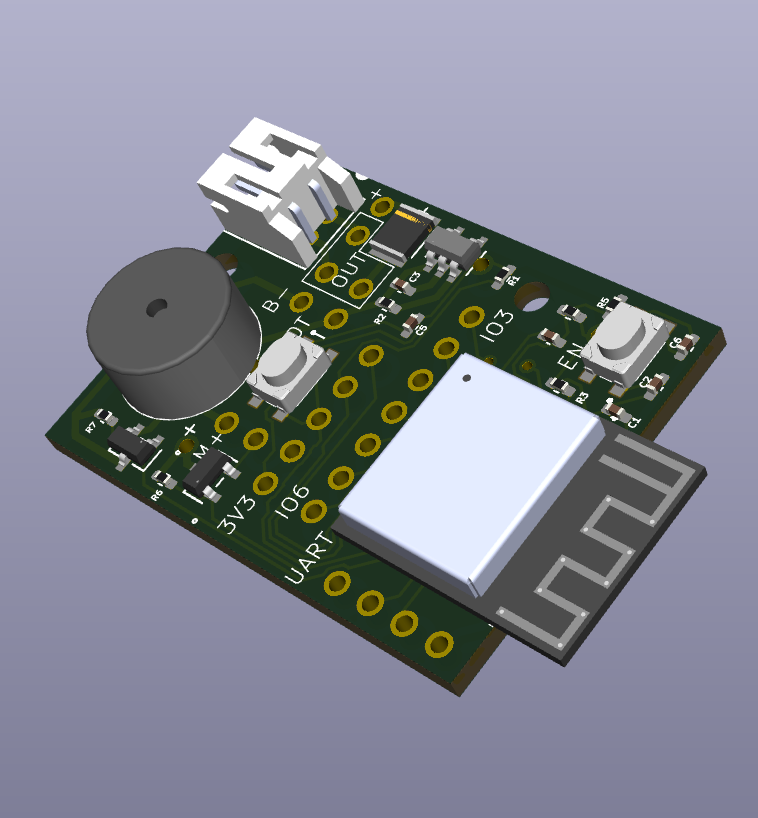

  2. PCB design in KiCad.
    PCB design in KiCad.

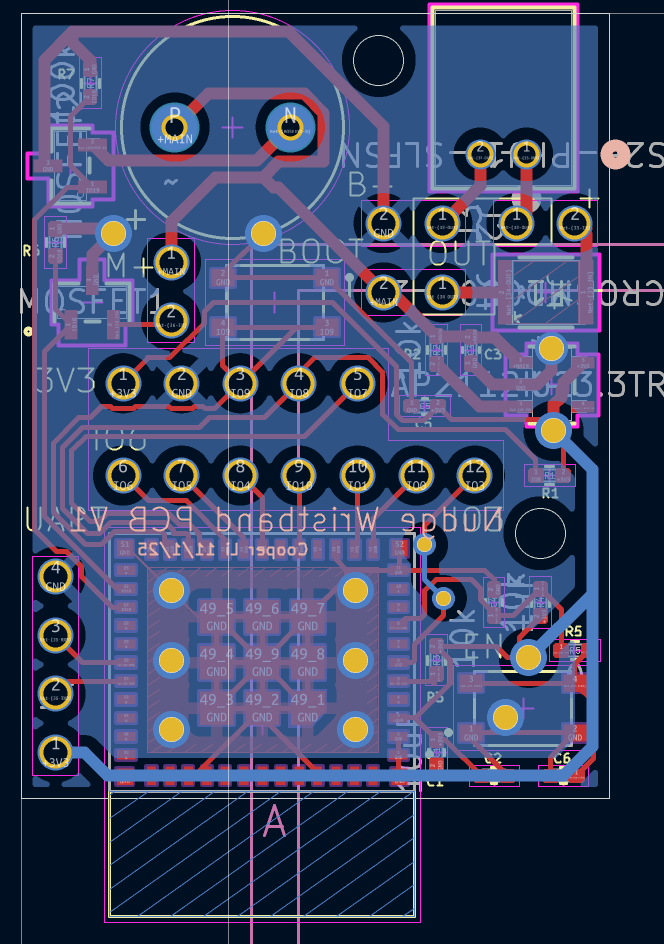

  3. PCB layout.
    PCB layout.

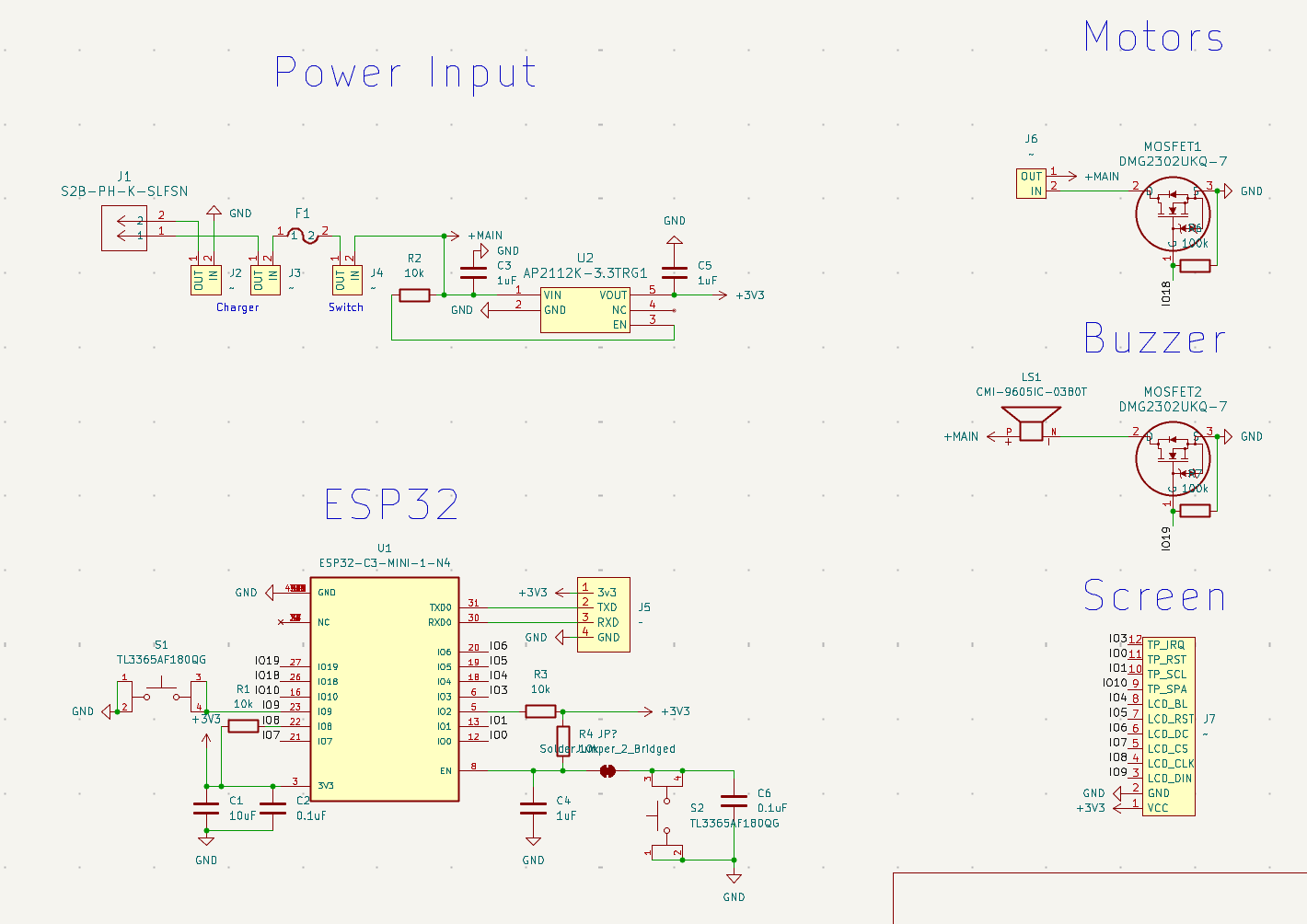

  4. PCB schematic.
    PCB schematic.

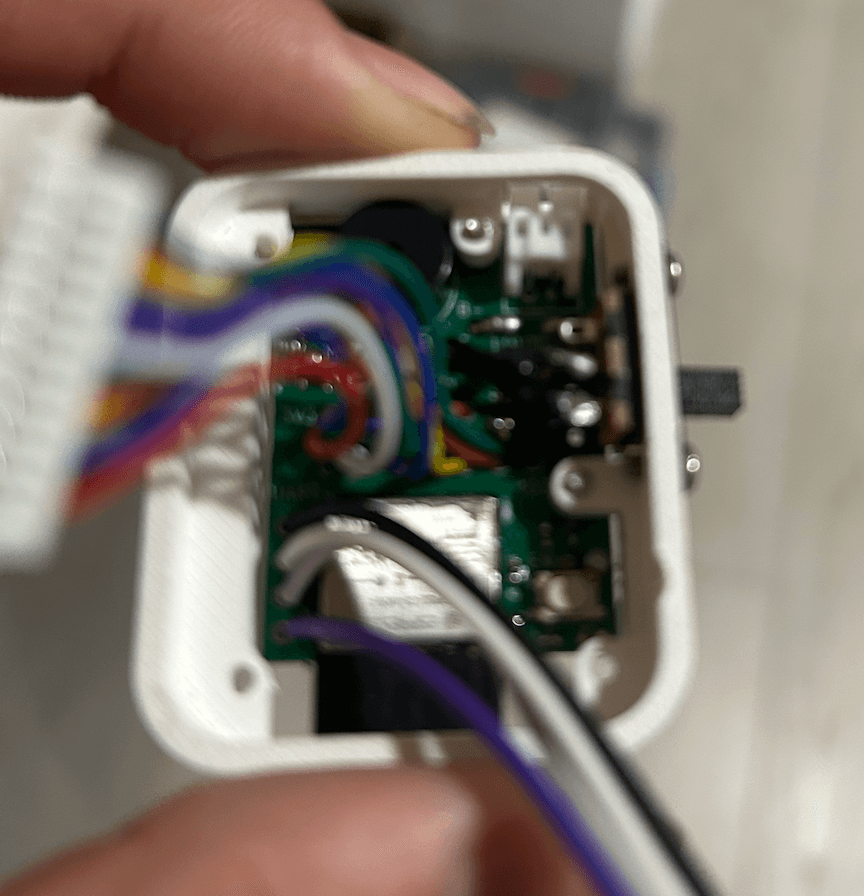

  5. Project media 5
    The board didn't end up working, I'm almost certain it was because of a ~350ohm leakage caused by me having a 0mm minimum clearance in KiCad settings. When redesigning, I pivoted to a wristphone design since I thought it was cooler.
Rev 2 (Wristphone)
